SGM41286.pdf
No.10814
● 7V to 14V Input Voltage
● 14V/19V 500mA Output
● DiSEqC 1.X Compatible
● Programmable -1V/+0.4V Drop Correction
● High Efficiency Low Head Room Architecture
● Acoustic Noise Free Low Power Operation
● Automatic Tone Repeater or Tone Synthesizer
● LDO Output and Low Out-of-Band Noise
● Internal Short-Safe Over-Current Protection
● Internal Over-Temperature Protection
● 200ms Current Limit Loading Surge Window

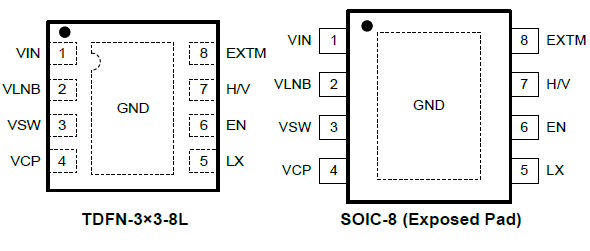

● Available in Green TDFN-3×3-8L and SOIC-8 (Exposed Pad)
Packages
● -40℃ to +85℃ Operating Temperature Range
This device is a high efficiency boost power supply which converts 12V nominal input to 14V/19V nominal output, plus a linear regulation stage for tone signal transmission. It could repeat the external 22kHz tone input symmetrically or synthesize a 22kHz tone signal upon external on/off control. Pulsing on its EN initials -1V/+0.4V drop correction, makes it suitable for using external surge absorbing devices and for long cable installation.
The SGM41286 is available in Green TDFN-3×3-8L and SOIC-8 (Exposed Pad) packages. It operates over an ambient temperature range of -40℃ to +85℃.
