SGM66056.pdf
No.10999
● 93% Efficiency Synchronous Boost Converter
● Device Quiescent Current: 34μA (TYP)
● Less than 1μA Shutdown Current
● Operating Input Voltage Range: 2.5V to 4.5V
● Fixed Output Voltage: 5.0V
● Output Voltage Clamping: 5.7V
● Power-Save Mode for Improved Efficiency at Low Output Power
● Load Disconnect during Shutdown
● Low Reverse Leakage Current when VOUT > VIN
● Over-Temperature Protection

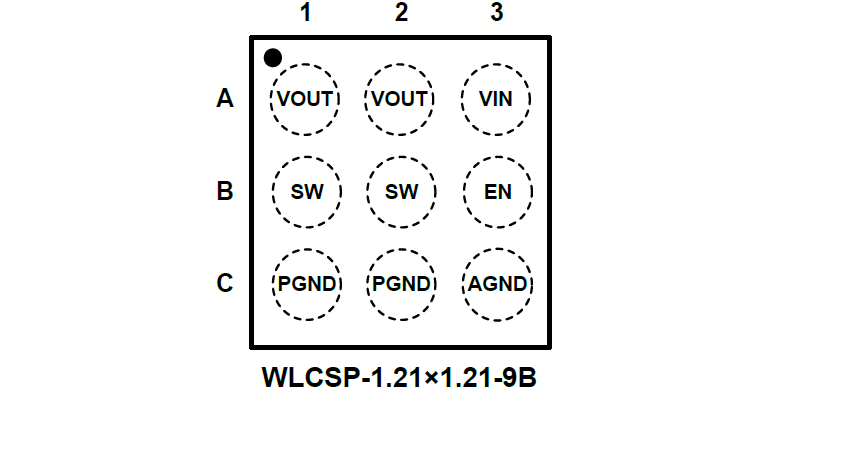

● Available in a Green WLCSP-1.21×1.21-9B Package
● -40℃ to +85℃ Operating Temperature Range

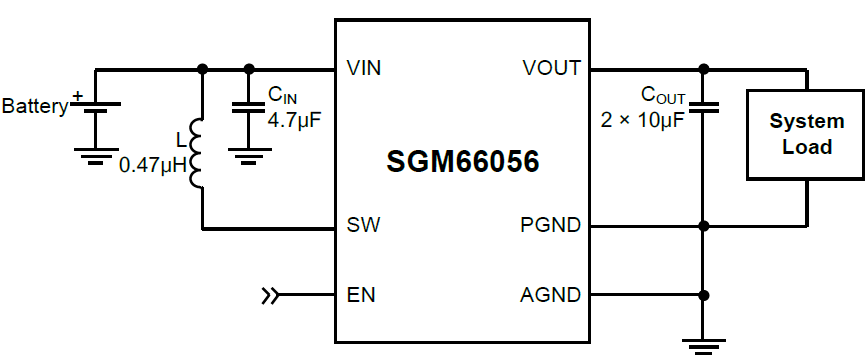

The SGM66056 is an internally compensated, 2.2MHz switching frequency, current mode, synchronous step-up (boost) switching regulator. This device turns into power-save mode to maintain high efficiency by lowering switching frequency. Anti-ringing control circuitry reduces EMI concerns by damping the inductor in discontinuous mode. Its output is disconnected by the rectifier circuit during shutdown, with no input to output leakage.
The SGM66056 is available in a Green WLCSP- 1.21×1.21-9B package. It operates over an ambient temperature range of -40℃ to +85℃.
