SGM8275-3.pdf
No.10818
● Rail-to-Rail Output
● Low Bias Current: ±1nA (TYP)
● High Open-Loop Gain: 120dB at VS = ±15V
● High PSRR: 142dB
● High Gain-Bandwidth Product: 3MHz
● Settling Time to 0.1% with 1V Step: 0.5μs
● Overload Recovery Time: 10μs
● Low Noise: 8.5nV/Hz at 1kHz
● Supply Voltage Range: 3.6V to 36V or ±1.8V to ±18V
● Input Common Mode Voltage Range:
(-VS) + 1.5V to (+VS) - 2V
● Low Quiescent Current:
0.9mA/Amplifier (TYP)
65μA Shutdown Current for SGM8275-3
● -40℃ to +125℃ Operating Temperature Range
The SGM8275-1 (single), SGM8275-2 (dual) and SGM8275-3 (single with shutdown) are low noise, low offset voltage and high voltage operational amplifiers, which can be designed into a wide range of applications. The SGM8275-1/2/3 have a high gain-bandwidth product of 3MHz, a slew rate of 4V/μs, and a quiescent current of 0.9mA/amplifier at wide power supply range. The SGM8275-1/2/3 are designed to provide optimal performance in low noise systems. They provide rail-to- rail output swing into heavy loads.

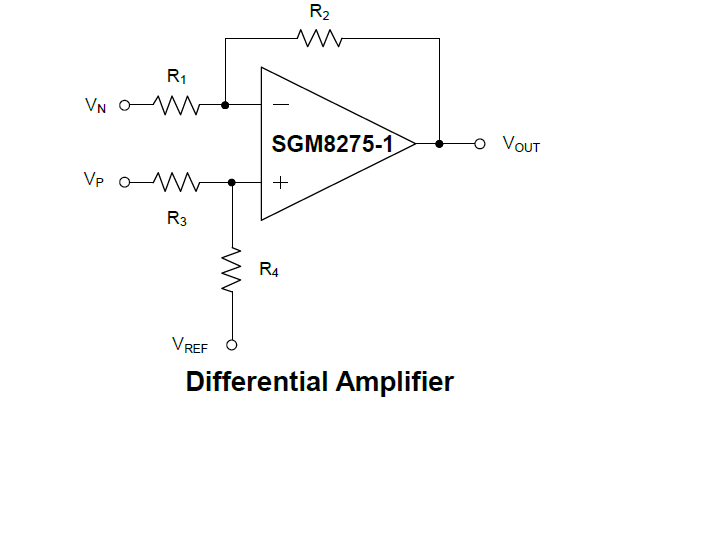

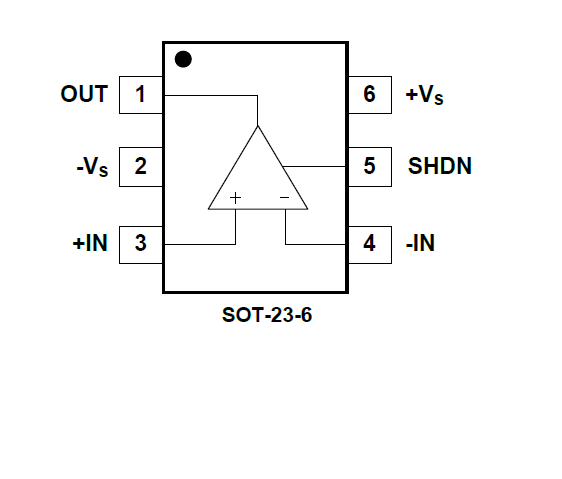

The SGM8275-3 has shutdown control to enter into shutdown status to save power consumption. The single version with shutdown SGM8275-3 is available in Green SOT-23-6 package. They are specified over the extended -40℃ to +125℃ temperature range.
