480μA, 6MHz, Rail-to-Rail I/O CMOS Operational Amplifier.
SGM8632
SGM8632.pdf
SGM8632.pdf
No.10771
FEATURES
? Rail-to-Rail Input and Output：3.5mV Maximum VOS
? High Gain-Bandwidth Product: 6MHz
? High Slew Rate: 3.7V/μs
? Settling Time to 0.1% with 2V Step: 0.5μs
? Overload Recovery Time: 0.9μs
? Low Noise: 13nV/ Hz at 1kHz
? Supply Voltage Range: 2V to 5.5V
? Input Voltage Range: -0.1V to +5.6V with VS = 5.5V
? Low Supply Current
SGM8632: 480μA/Amplifier (TYP)
? Small Packaging
SGM8632 Available in Green MSOP-8 and SOIC-8
DESCRIPTION
The dual SGM8632C is a low noise, low voltage, and low power operational amplifier that can be designed into a wide range of applications. The SGM8632C has a high gain-bandwidth product of 6MHz, a slew rate of 3.7V/μs and a quiescent current of 480μA/amplifier at 5V.
The SGM8632C is designed to provide optimal performance in low voltage and low noise systems. It provides rail-to-rail output swing into heavy loads. The input common mode voltage range includes ground, and the maximum input offset voltage is 3.5mV. The operating supply range is from 2V to 5.5V. The dual SGM8632C is available in Green MSOP-8 package. It is specified over the extended industrial temperature range (-40℃ to +125℃)

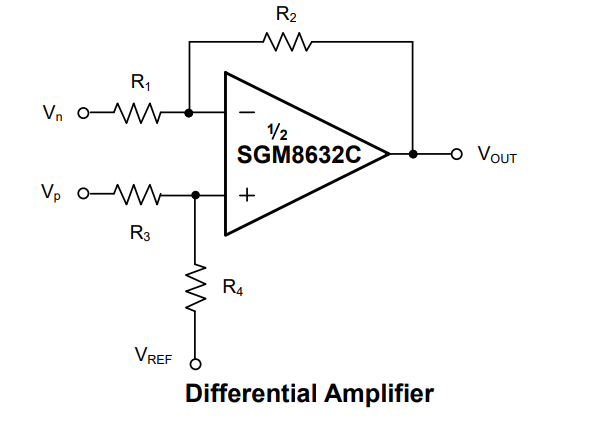

APPLICATION CIRCUIT

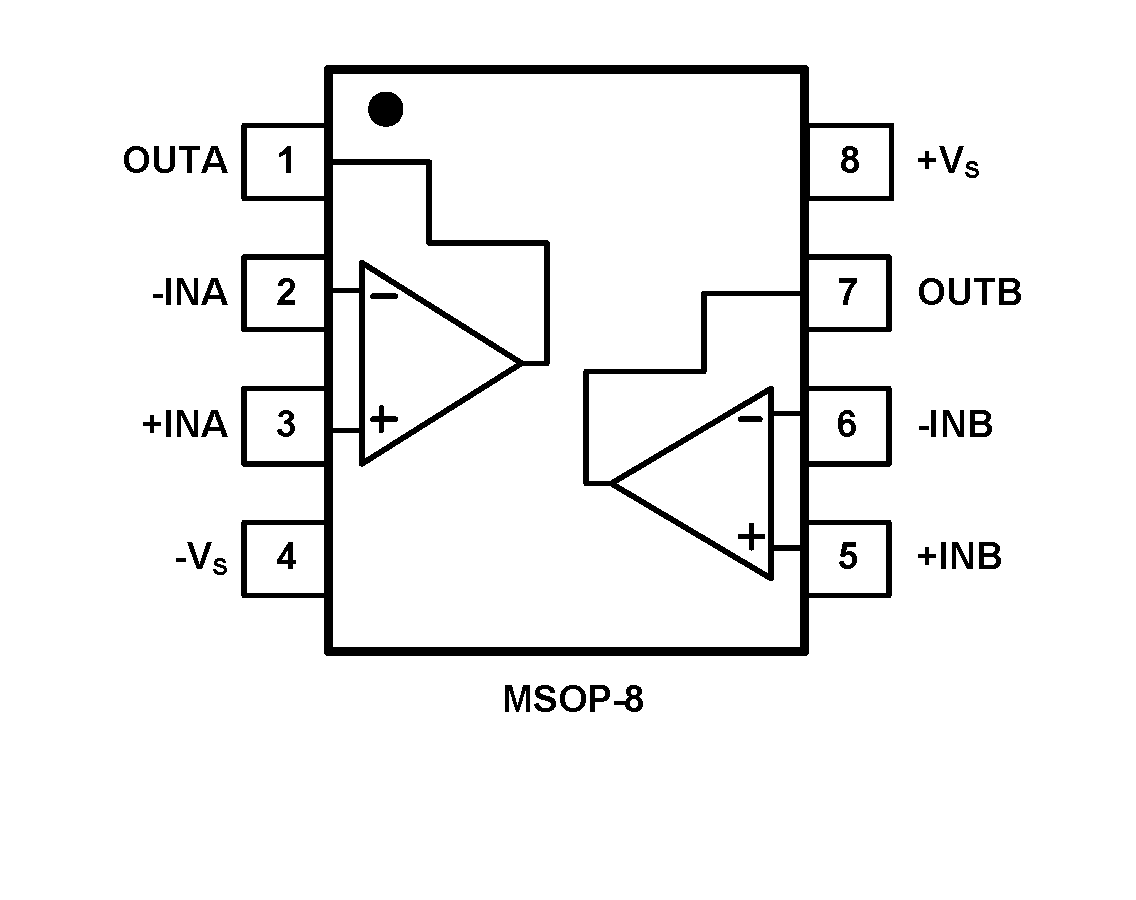

PIN CONFIGUTION
